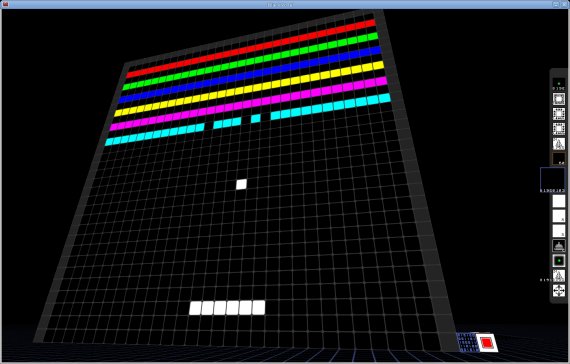

Auto Brick Breaker

// AUTO BRICK BREAKER

init<-0;
ball_x<-0;
ball_y<-0;
old_ball_x<-0;
old_ball_y<-0;
v_x<-0;
v_y<-0;
r_x<-0;
r_y<-0;

// Init display makes a voxel display wall using special display voxels.

function Init_Display(Size)
{
  local x,y;

  // Clear Zone

  for (x=0;x<32;x++)
    for (y=0;y<64;y++) UNF_PlaceVoxel3D(x+1,y,0,0);

  // Setup the screen

  for (x=0;x<Size;x++)
    for (y=0;y<Size;y++) UNF_PlaceVoxel3D(x+1,y,0,223);
}

// This function is called repeatedly for each step of the robot.

function Voxel_Step()
{
  local x,y,i,j, col_t, col_b, col_l, col_r;

  // Startup code, build the environnment. Executes only once.

  if (init == 0)
  {
    init = 1;
    Init_Display(32);
    r_x = 5;
    r_y = 29;
    v_x =1;
    v_y =-1;
    ball_x = 5;
    ball_y = 25;
    Image_New(0,32,32);
    Image_Clear(0,7);

    // Make brick walls.

    for (j=8;j<14;j++)
      for (i=0;i<15;i++)
      {
        Image_SetPixel(0, i*2 + 1 , j*2 - 14, j);
        Image_SetPixel(0, i*2 + 2 , j*2 - 14, j);
      }
  }

  Image_Line(0,0,0,31,0,6);
  Image_Line(0,0,0,0,31,6);
  Image_Line(0,31,0,31,31,6);

  col_t = Image_GetPixel(0, ball_x  , ball_y - 1);
  col_b = Image_GetPixel(0, ball_x  , ball_y + 1);
  col_l = Image_GetPixel(0, ball_x-1, ball_y    );
  col_r = Image_GetPixel(0, ball_x+1, ball_y    );

  if (col_t != 7) {Image_SetPixel(0, ball_x  , ball_y - 1,7); v_y =  1; }
  if (col_b != 7) {Image_SetPixel(0, ball_x  , ball_y + 1,7); v_y = -1; }
  if (col_l != 7) {Image_SetPixel(0, ball_x-1, ball_y    ,7); v_x =  1; }
  if (col_r != 7) {Image_SetPixel(0, ball_x+1, ball_y    ,7); v_x = -1; }

  Image_SetPixel(0,old_ball_x, old_ball_y, 7);
  Image_SetPixel(0,ball_x, ball_y, 0);

  old_ball_x = ball_x;
  old_ball_y = ball_y;
  ball_x += v_x;
  ball_y += v_y;

  if (ball_y > 13)
  {
    if ( (ball_x > (r_x+2)) && r_x < 25 ) r_x++;
    if ( (ball_x < (r_x+2)) && r_x > 1 )  r_x--;
  }

  if (ball_y>29) Init=0;

  Image_Line( 0, 1,r_y, 30, r_y, 7);
  Image_Line( 0, r_x, r_y, r_x+5, r_y, 0 );

  // Render the canva to the voxel wall

  for (x=0;x<32;x++)
    for (y=0;y<32;y++)
    {
      i = Image_GetPixel(0,31-x,31-y);
      Voxel_SetInfo(1+x,0+y,0,1,i);
    }

}
